Reference – Dash connections

I wanted to note what connections are for the dash. This was done on the vert (has up/down buttons).

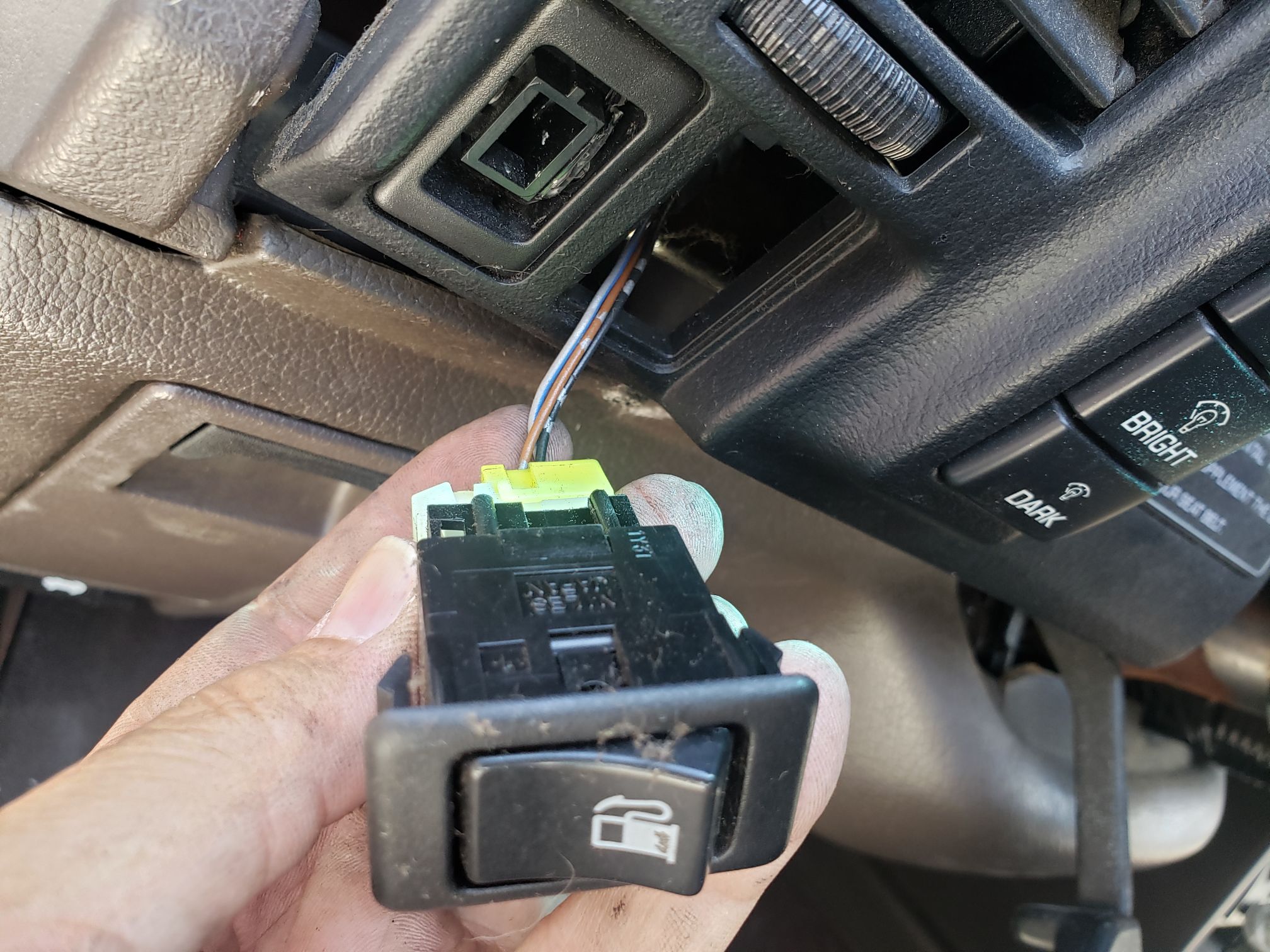

Gas door release (3 wire plug)




Trunk switch (usually broken) (2 wires)

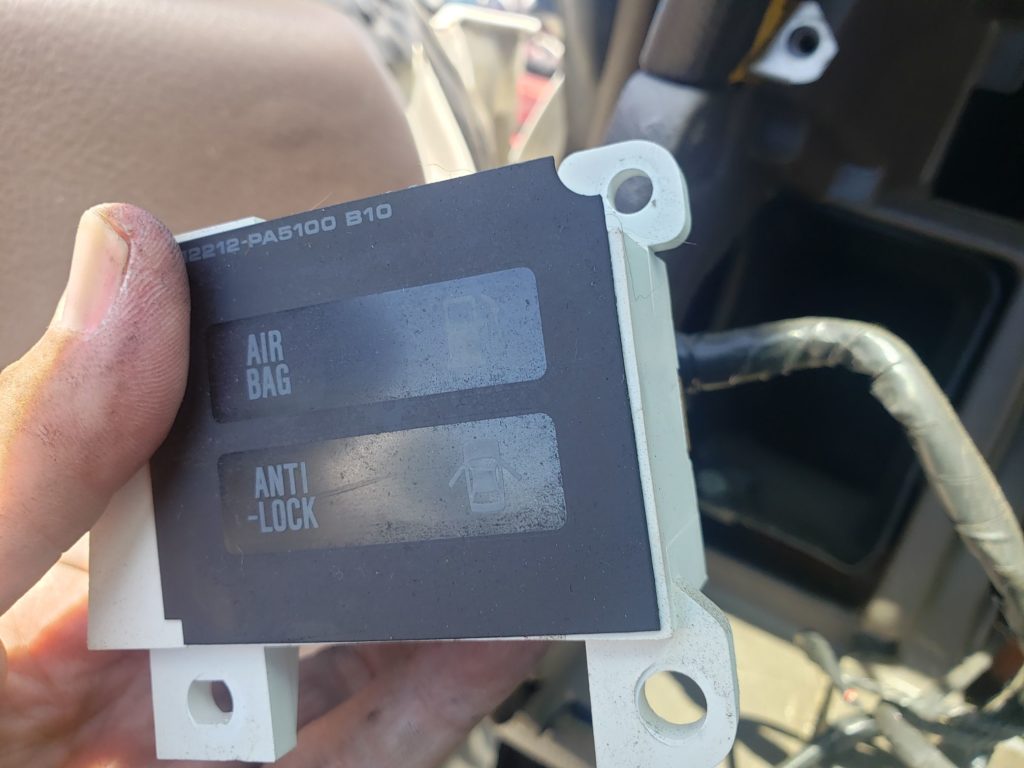

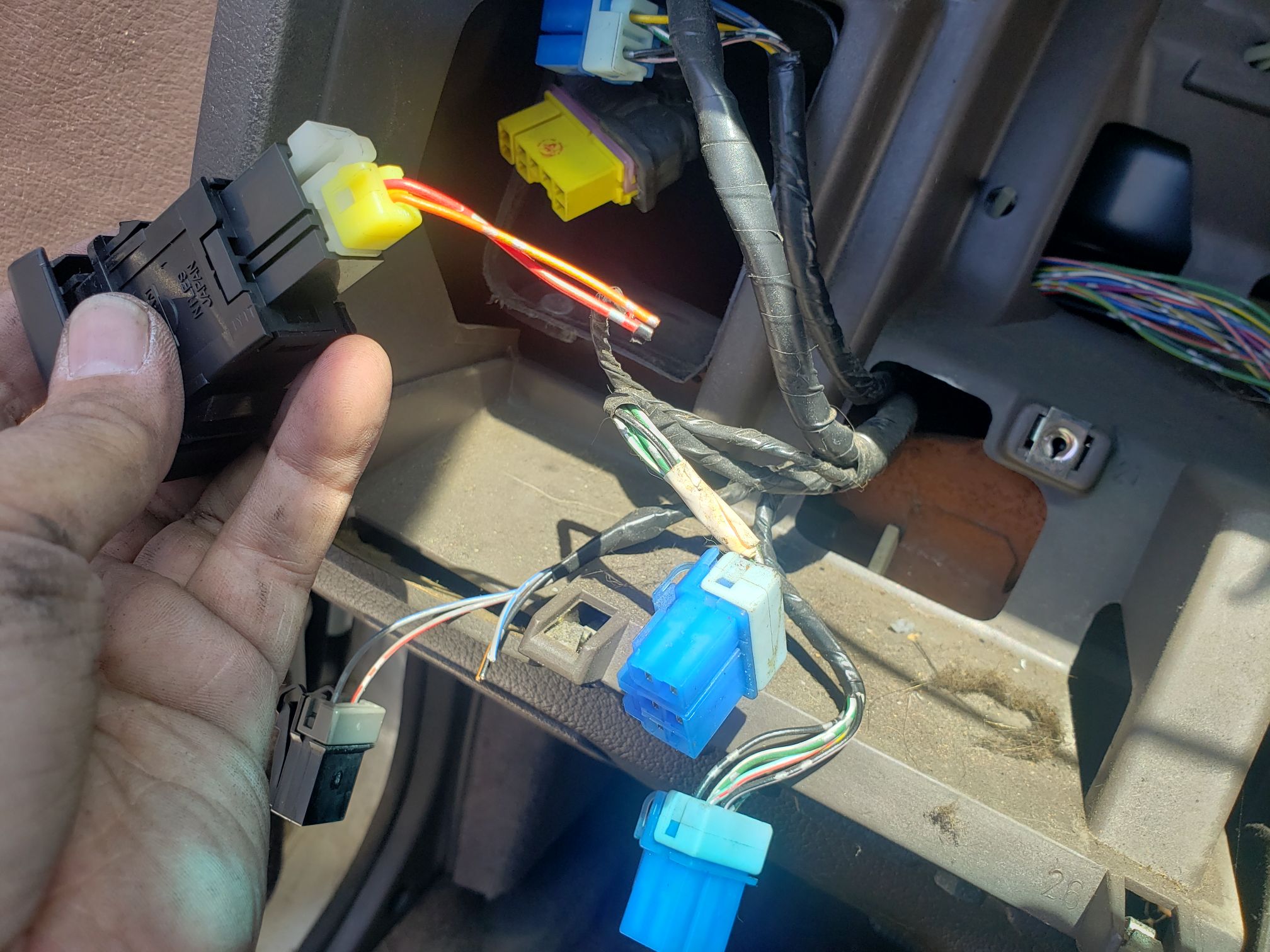

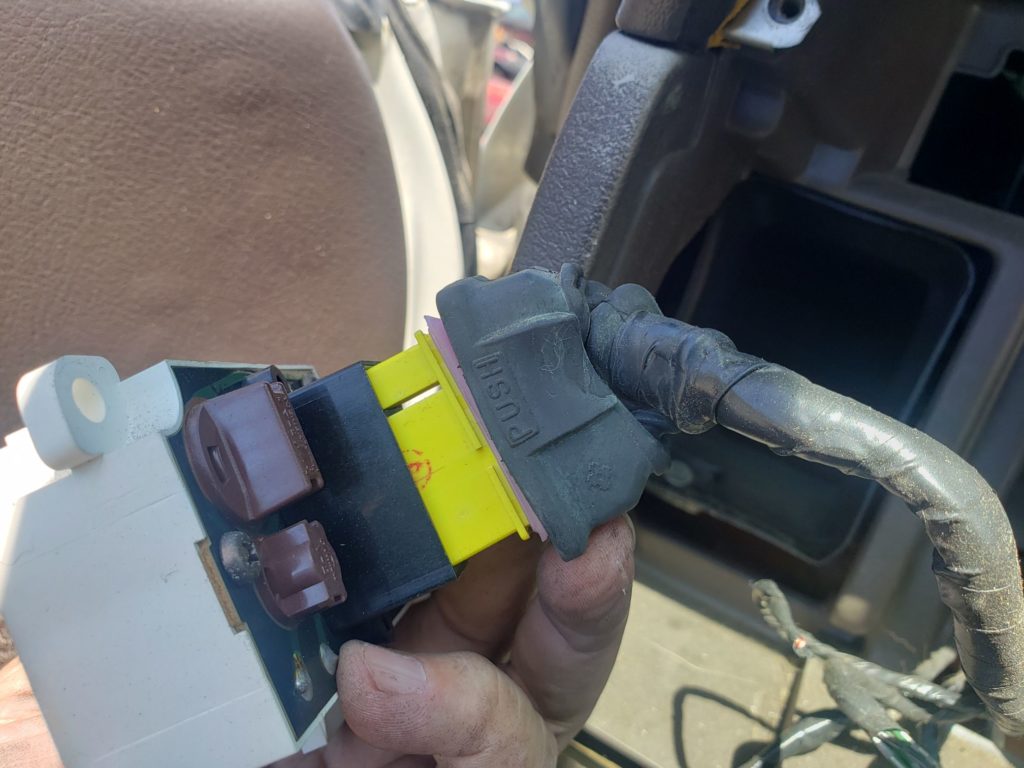

Warning lights (Top left of dash) (thick yellow plug)

  • airbag
  • low fuel
  • anti-lock brakes
  • door open

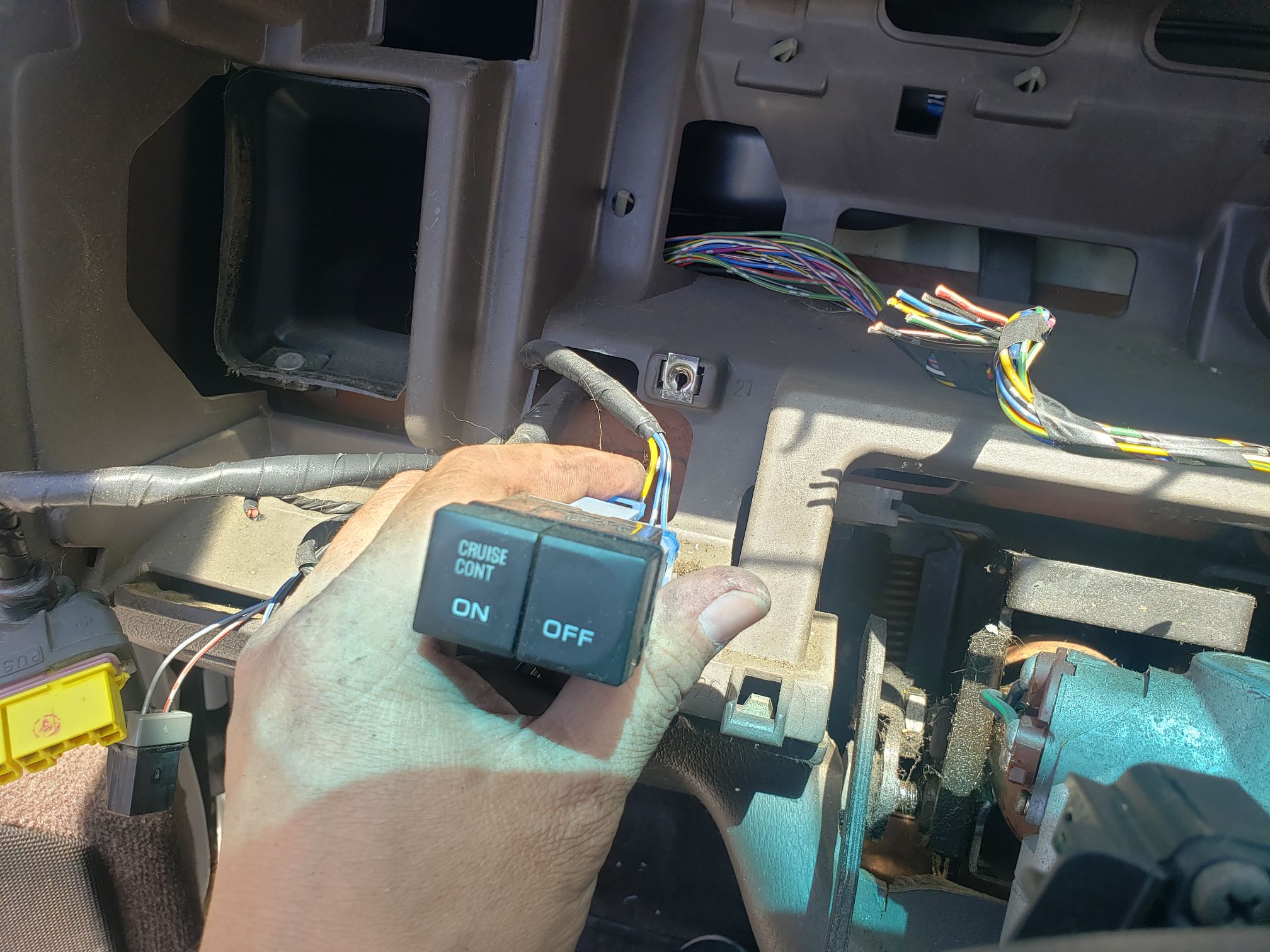

Cruise Control (left of steering wheel)

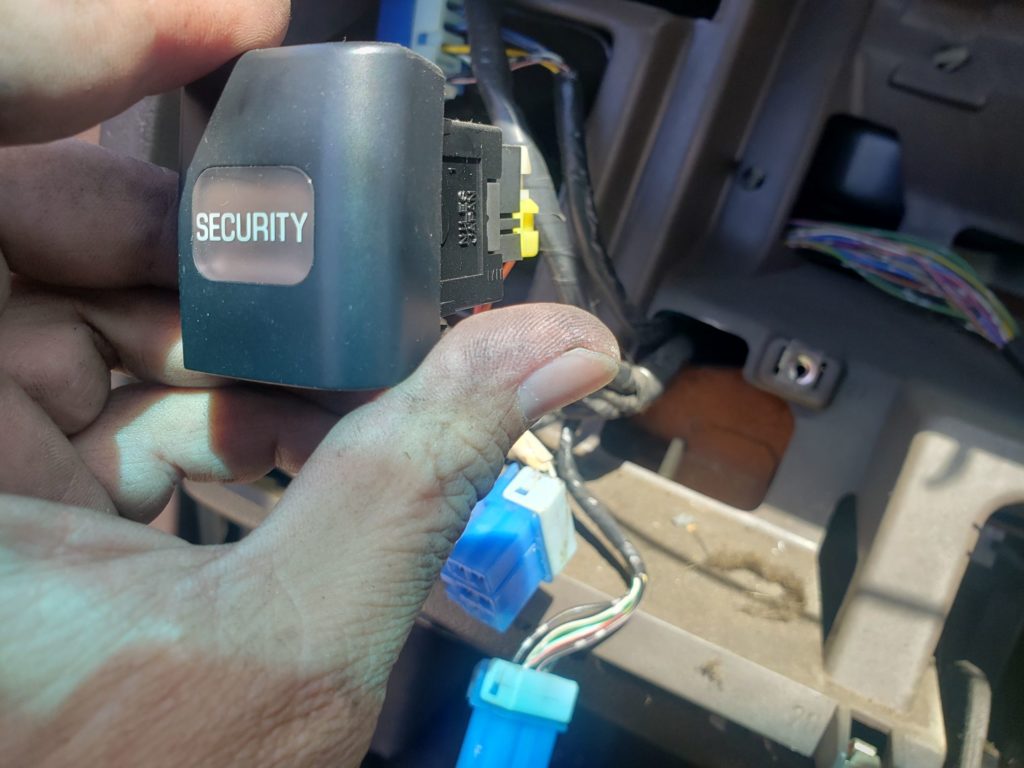

Security light

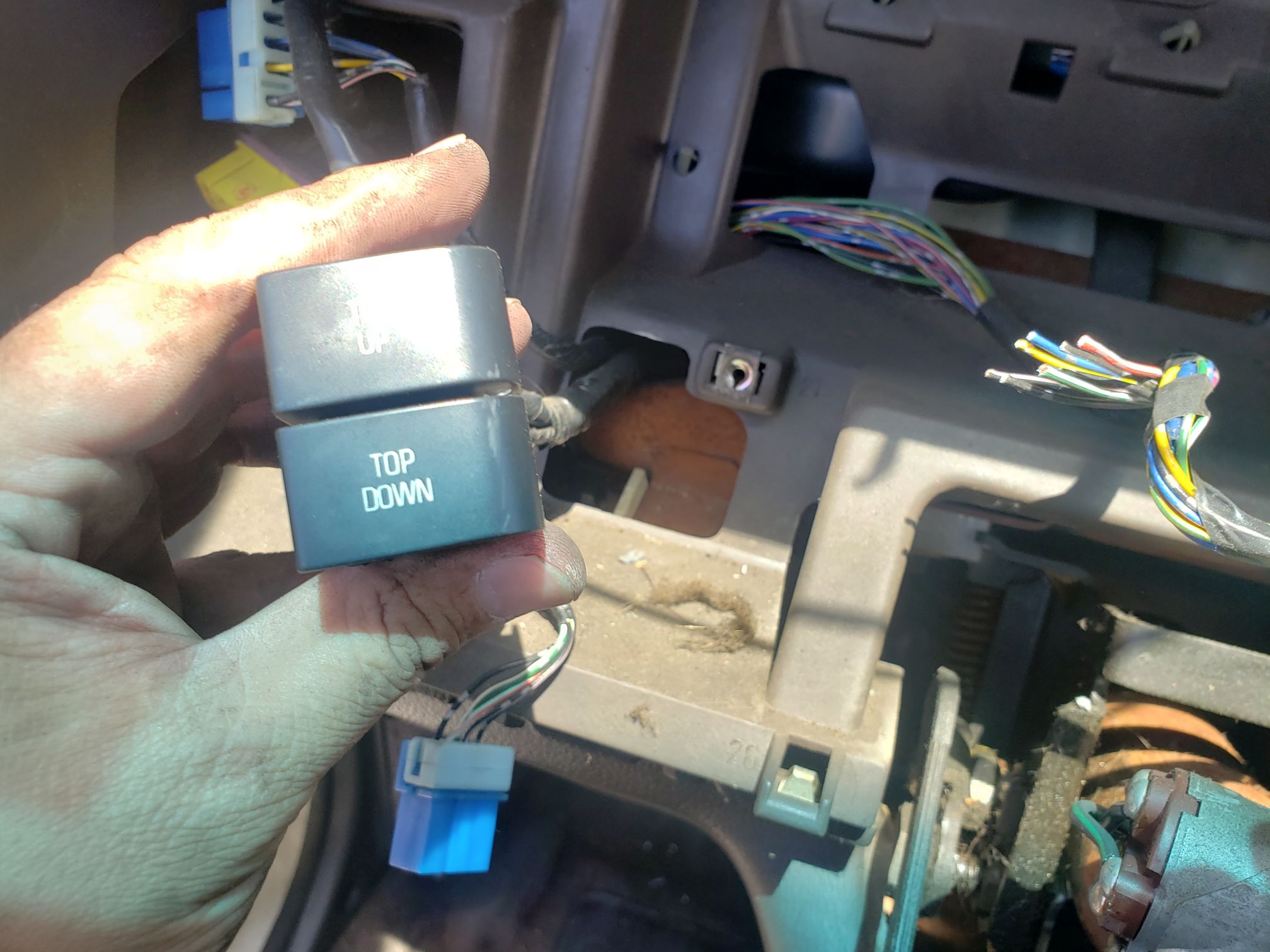

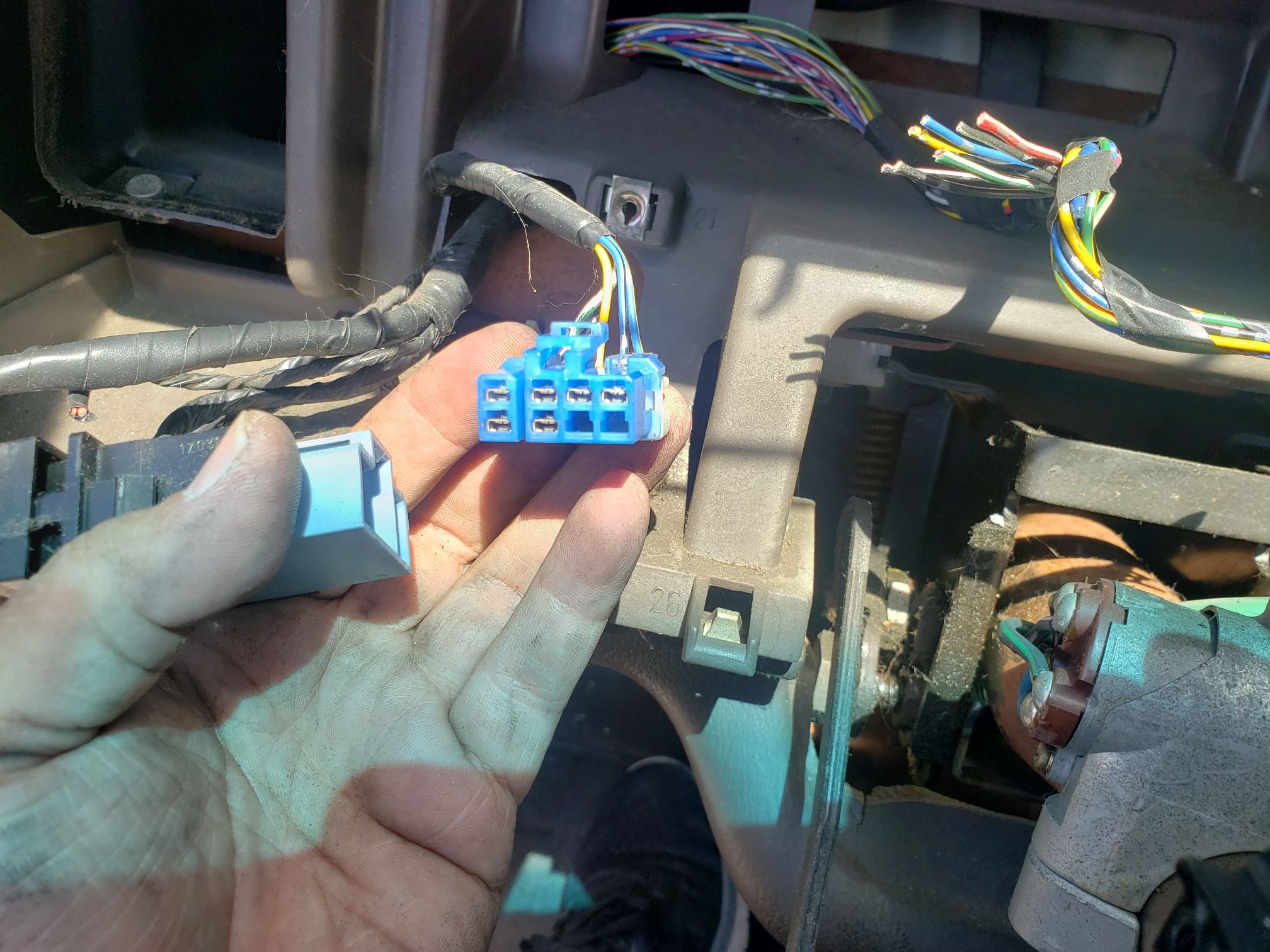

Top up and Top down button (convertible)

Defroster button (coupe – might have different plug)



Bright/Dark illumination buttons


Radio buttons (right side of dash)
